Extruded Filter Discs OtherHexagonal Wire Netting
Hexagonal Wire Netting (Chicken/Rabbit/Poultry Wire) is made of low carbon iron wire, galvanized or hot-dip zinc plated before or after weaving. Hexagonal wire netting is firm in structure and has flat surface. It is extensively used in industrial and agricultural constructuons as reinforcemnet and fencing. It is also used as Fence for Poultry Cage, Fishing, Garden and Children playground, etc.
Assortments Available:
Hexagonal Wire Netting Electro Galvanized before Weaving
Hexagonal Wire Netting Electro Galvanized After Weaving
Hexagonal Wire Netting Hot Dipped Galvanized before Weaving
Hexagonal Wire Netting Hot Dipped Galvanized after Weaving
Hexagonal Wire Netting PVC Coated Before or After Weaving
Stainless Steel Hexagonal Wire Netting
Other Hexagonal Wire Netting
Galvanized Hexagonal Wire Netting | |||||
Mesh | Min. Gal.v. | Width | Wire Gauge (Diameter) | ||
Inch | mm | Tolerance(mm) | |||
3/8" | 10mm | ±1.0 | 0.7mm - 145 | 2' - 1M | 27, 26, 25, 24, 23 |
1/2" | 13mm | ±1.5 | 0.7mm - 95 | 2' - 2M | 25, 24, 23, 22, 21 |
5/8" | 16mm | ±2.0 | 0.7mm - 70 | 2' - 2M | 27, 26, 25, 24, 23, 22 |
3/4" | 20mm | ±3.0 | 0.7mm - 55 | 2' - 2M | 25, 24, 23, 22, 21, 20, 19 |
1" | 25mm | ±3.0 | 0.9mm - 55 | 1' - 2M | 25, 24, 23, 22, 21, 20, 19, 18 |
1-1/4" | 31mm | ±4.0 | 0.9mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
1-1/2" | 40mm | ±5.0 | 1.0mm - 45 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
2" | 50mm | ±6.0 | 1.2mm - 40 | 1' - 2M | 23, 22, 21, 20, 19, 18 |
2-1/2" | 65mm | ±7.0 | 1.0mm - 30 | 1' - 2M | 21, 20, 19, 18 |
3" | 75mm | ±8.0 | 1.4mm - 30 | 2' - 2M | 20, 19, 18, 17 |
4" | 100mm | ±8.0 | 1.6mm - 30 | 2' - 2M | 19, 18, 17, 16 |
Note:
1.) The above tolerance comply with standard EN10223-2:1997;
2.) Minimum Galvanization is only for typical wire diameter as stipulated separately in the column for your reference; Also it is only for hot dipped Galvanized Netting.
PVC Coated Hexagonal Wire Netting | |||
Mesh | Wire Gauge (MM) | Width | |
Inch | MM | - | - |
1/2" | 13mm | 0.6mm - 1.0mm | 2' - 2M |
3/4" | 19mm | 0.6mm - 1.0mm | 2' - 2M |
1" | 25mm | 0.7mm - 1.3mm | 1' - 2M |
1-1/4" | 30mm | 0.85mm - 1.3mm | 1' - 2M |
1-1/2" | 40mm | 0.85mm - 1.4mm | 1' - 2M |
2" | 50mm | 1.0mm - 1.4mm | 1' - 2M |
We also offer other specifications you need | |||
Note: The thickness of PVC Coating is usually 0.2-0.4mm, others may arranged as per buyers’ request;

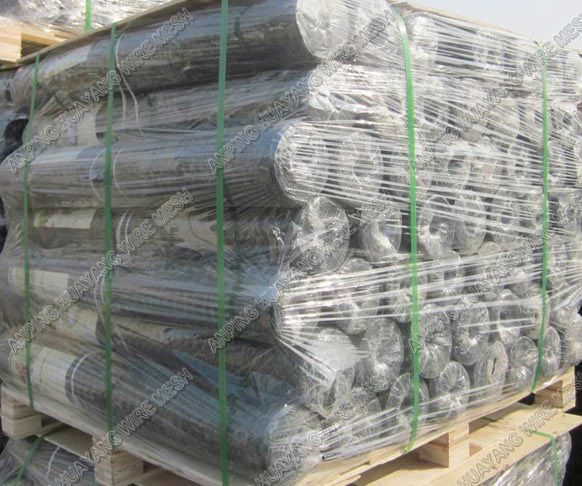

Package: Normally each roll packed in water proof paper, then in termo foil (Shrinked Plastic);

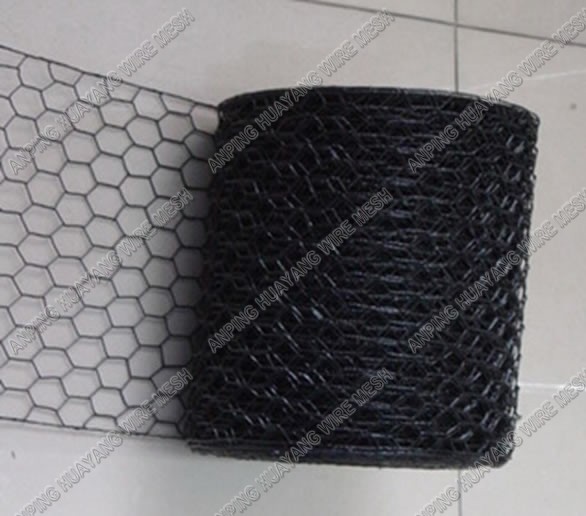

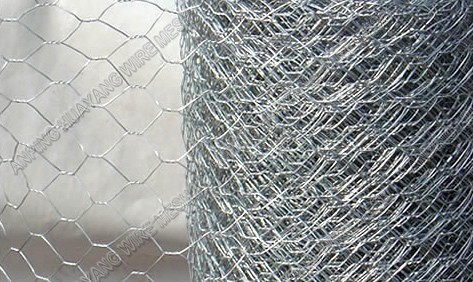

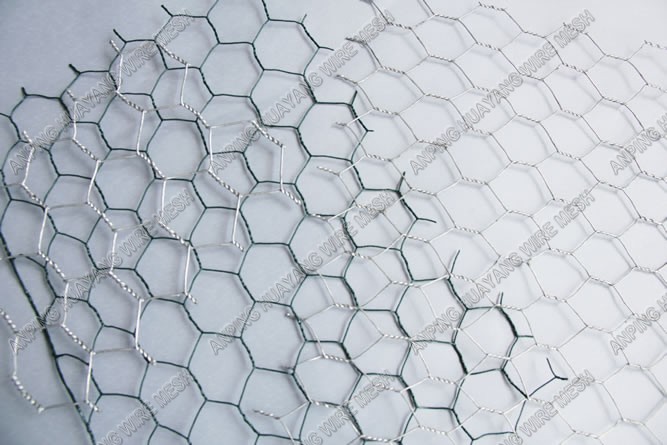

Hexagonal Wire Netting Images Show:
